G.A.S REPEATERS

VHF 145.250 REPEATER - 145.250 -600 88.5 tone

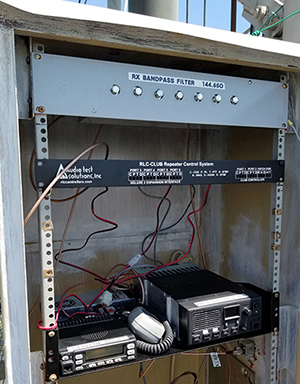

The replacement 145.250 repeater returned to the air on Thursday June 7, 2018. The machine was off the air for nearly 13 months due to damage on the tower. Thanks to the efforts of Danny Hampton, K4ITL and the tower crew led by Murray Adams, WA4DAN, it has now been replaced and better than ever. Weather and work on the WFMY TV tower made for a lengthy process of access for tower time. The repeater is the same as before with the NCPRN and all new equipment. The repeater is a modified Kenwood TKR750 Ver. 2 and running 50 watts out into a split antenna system at 1400 feet. It still use an 88.5 tone on transmit and receive. the echo link is now back active with many thanks to Jim Hightower, W4JLH.

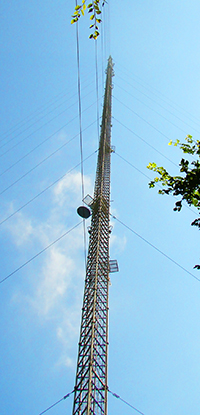

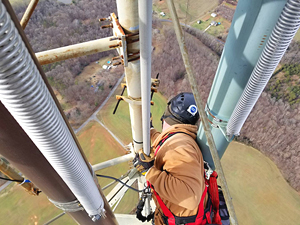

Here are some photos and a coverage map of the repeater and great views from the top of the WFMY TV 2000' tower. (Murray, WA4DAN for provided the photos)


UHF W4GG DMR REPEATER


This is infomration for the Browns Summit DMR repeater - 444.225 Mhz. It is an open repeater a membership to G.A.S. is not required (but appreciated) It is part of the Piedmont Repeater Network (PRN)

The repeater is located off Scott Rd. just near Lee's Chapel Rd, in Northeast Greensboro in the Browns Summit community. The antenna is at approximately 310 feet.
The repeater is the latest technology Motorola SLR5700.

IMPORTANT INFORMATION ABOUT THE DMR REPEATER & DATA BELOW:

*** On demand activates a talkgroup when users request - Key it up and release - the connection continues for 15 minutes after the end of transmissions or when the "Clear Timeslot" is activated. When you finish your QSO use the "Clear Timeslot" to clear The Time Slot you were using.

*** The PRN Talkgroup is NOT for a long QSO - it is a "calling channel" - keep QSOs brief or QSY your party off to a Chat 1 or Chat 2 TG. If your party is on the same repeater, go to that repeater's LOCAL. When you go to another TG, PLEASE listen once you have keyed it to activate, BEFORE you transmit.
DO NOT USE Chat 1 or 2 if you are both on the SAME repeater
USE LOCAL only !!

LOCAL PRIORITY

Repeaters in the PRN system, the "Local TG" should have priority usage of Timeslot 1. While we understand, appreciate, and respect the desire to work other stations outside the primary PRN footprint via TGs TAC 310 and TAC 1, locals should have priority given then probability of more traffic and more users in the repeater(s) defined area. As a PRN/DMR repeater user, please be aware of other traffic - activity on the repeater or Timeslot. Use "Monitor All" or observe the busy light on your radio before you transmit.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

*** If you are concerned about your audio or to check to see if you are getting into a specific repeater - use the Echotest function.

*** Most all repeaters in the PRN systen are programmed alike.

*** The Local of Browns Summit, King, Graham and Lexington are tied together - so when you are on one you will be on four locals at the same time.

A GOOD POWER POINT PRESENTATIOIN ON DMR - CLICK HERE

OTHER DMR LINKS OF INTEREST:

NCPRN.NET - This is a good place for local North Carolina Info and code plugs. The Last Heard List is helpful also. (If the Last Heard is not operational here, see one of the other liniks below)

The DMRVA (Virginia) folks support Last Heard List viewing of theirs along with K4USD and NCPRN via this. http://dmrva.org/multiwatch/ Another good link to observe the PRN is through their side of the VA network. (which means no local from NC or SC). http://www.dmrva.org/dmrva-last-heard/

A nice puliciation you can download for free - explains a lot about DMR - this is a PDF file HERE

Look up a name associated with an ID number on DMR-MARC Database -- CLICK HERE

The DMR-MARC home page - HERE

Before you request an ID, read the info on this page - HERE

Register for a DMR ID number - HERE

RADIOS ALLOWED: The new Baofeng DM-5R is a Tier 1 radio only. This radio WILL NOT WORK on any DMR amateur radio repeaters at all. The repeaters used by DMR-MARC, Brandmeister and stand alone repeaters, including those in the PRN system, are all Tier II repeaters. If you try and use the Baofeng DM-5R on any DMR amateur radio repeater you WILL tie up both time slots. This is a sure way to make enemies on DMR in a hurry. No lower tier radios BELOW the MD380s / MD390s and CS700/750s are allowed on our system. Radios by Motorola, Tyteria MD380, MD390; Connect Systems radios are Tier II radios and all Okay. If you have any doubts, please ASK before purchasing.


DMR REPEATER NETS (More will be added as we are informed)

High County UHF Digital Net meets at 8 p.m. each Tuesday. (See below WNC DMR Amateur radio group)
Local talkgroups linked together from 7:55 p.m. to 9:05 p.m. (to account for any variations in time on CBridge).


Western NCDMR Amateur Radio Group

This is a nice web site for information regarding code plug information
for Western North Carolina

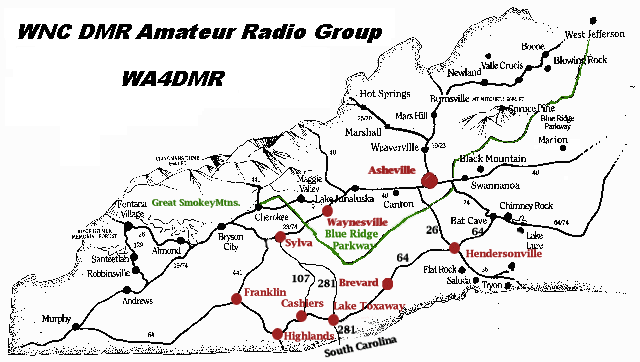

CLICK MAP to got to site

High County UHF Digital Net meets at 8 p.m. each Tuesday.
Local talkgroups linked together from 7:55 p.m. to 9:05 p.m. (to account for any variations in time on CBridge).

The following repeaters are linked for the net:

K4ITL Roanoke
W4VSP Wytheville
WX4F Fancy Gap
W4MLN West Jefferson
W4FAR Wilkesboro
WA4NC Boone
WA4NC Sugartop
KC4BCC Lenoir
KC4TVO Spruce Pine
KA4YMZ Crowders Gastonia




TIME SLOT 1
TIME SLOT 2
Access
TG
Timing
Access
TG
Timing
Local
27500
24/7
PRN
2
24/7
TAC 1 (World)
8951
On Demand
TAC 310 (North America)
310
On Demand
PRN Chat 1
27501
On Demand
PRN Chat 2
27502
On Demand
Echotest
9998
On Demand
Clear Timeslot
27000
On Demand
Reminder: DO NOT use a Chat group if both parties are on the same repeater.
Likewise DO NOT use PRN to talk with another station if you are on the same repeater.
LOCALs which are combined are considered ONE local.
DO NOT use a chat group if you are on a local repeater within the Local group.
If you go to another repeater outside the Local
group, then you can use a Chat group
USE Monitor All to monitor talk groups on a repeater.





Rember this is a volunteer organization and we strive to keep our repeaters running at all tmes.

For further information or questions, please contact G.A.S. trustee Jim Hightower, W4JLH at w4jlh@bellsouth.net or Tom Forrest, N4GVK, at n4gvk@bellsouth.net
